Description

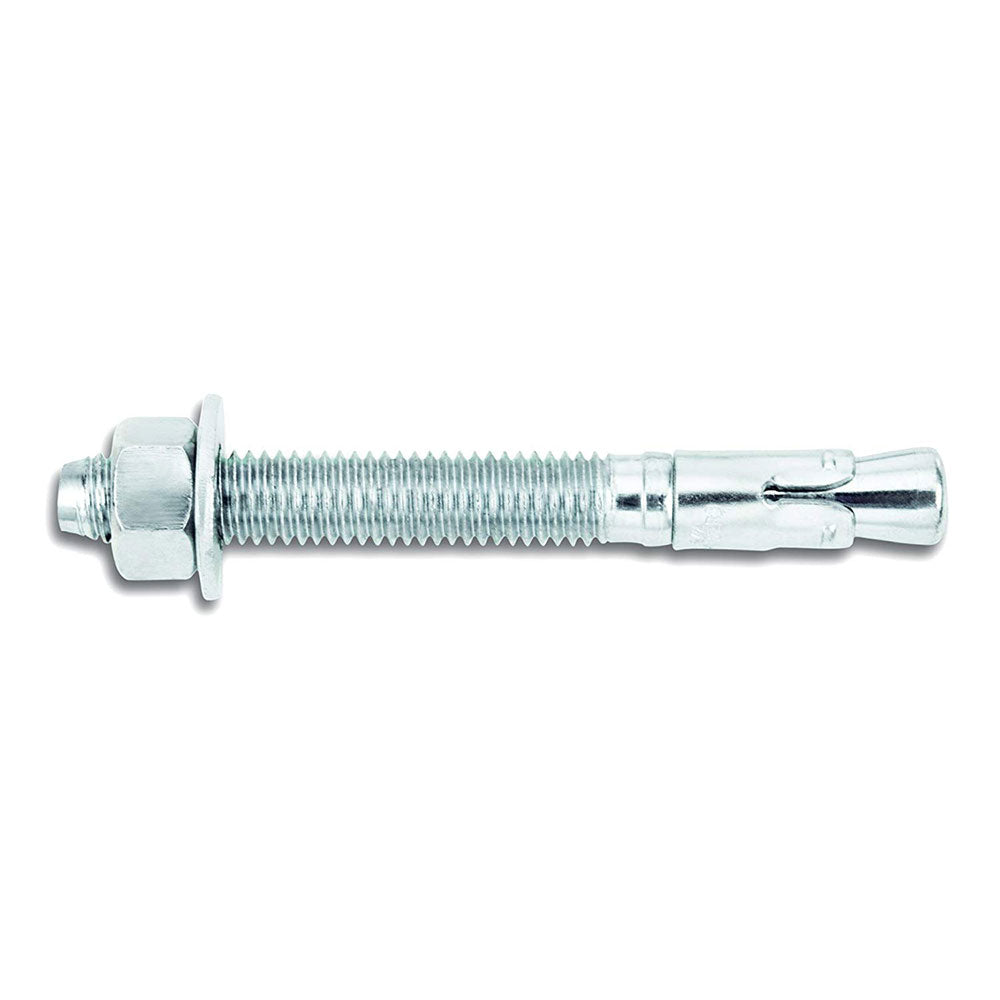

Powers Fasteners 7430SD1-PWR Description
The power-stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and untracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
Powers Fasteners 7430SD1-PWR Includes
- (1) Power-Stud SD1 Type Wedge Expansion Anchor, 5/8"x3-1/2" 5/Bx
Powers Fasteners 7430SD1-PWR Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
Powers Fasteners 7430SD1-PWR Specifications
| Diameter | 5/8" |
| Length | 6" |
| Material | Carbon Steel |
| Thread Length | 4.5 |
| UL Listed | Yes |
