Description
Powers Fasteners 7424SD2-PWR Description

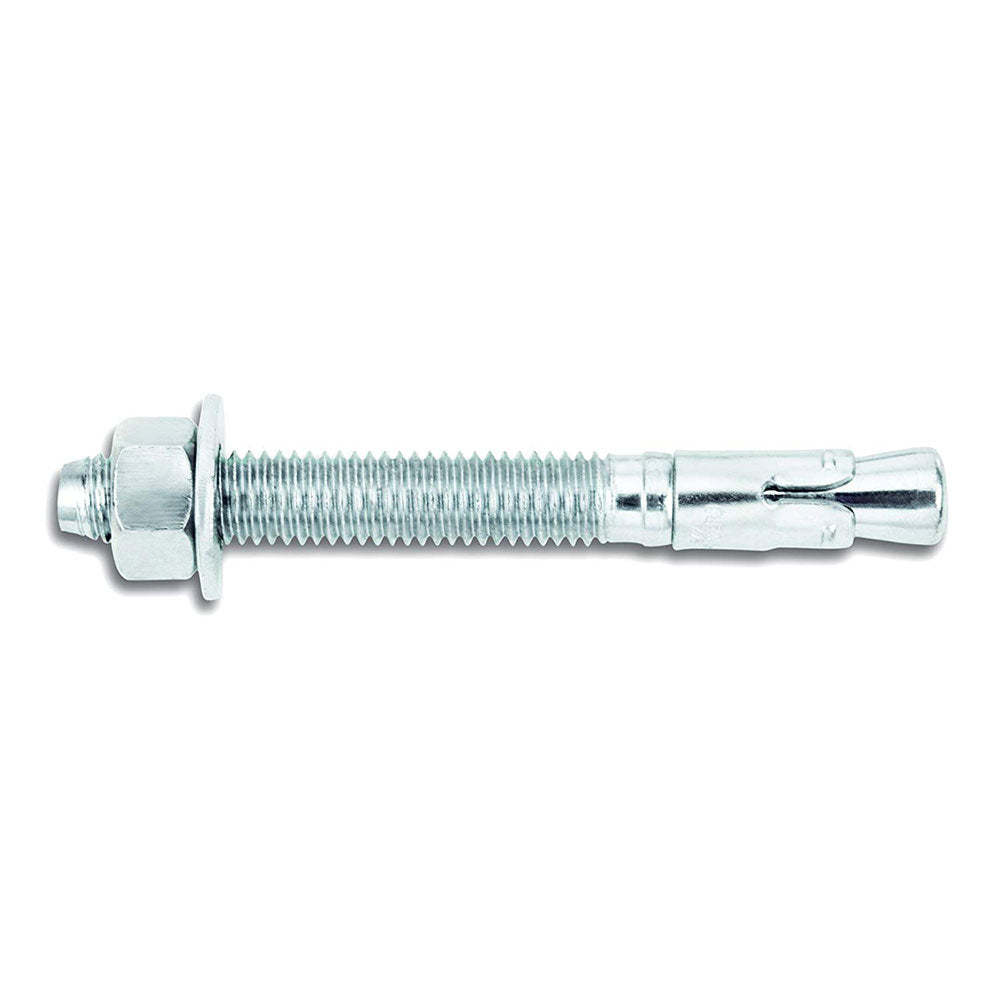

The power-stud+ SD2 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and untracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete and concrete over steel deck. The anchor is manufactured with a zinc plated carbon steel body and stainless steel expansion clip for premium performance.
Powers Fasteners 7424SD2-PWR Includes
- (50) Power-Stud Carbon Steel Wedge Anchor 1/2" x 5-1/2"
Powers Fasteners 7424SD2-PWR Features
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading
Powers Fasteners 7424SD2-PWR Specifications
| Material | Carbon Steel / Stainless Steel |
| Diameter | 1/2" |
| Length | 5-1/2" |
| Finish | Zinc Plated |
| Thread Length | 3-7/8" |
| Carbide Bit Size | 1/2" x 10" |
