Description
DeWalt DWE7485 Description

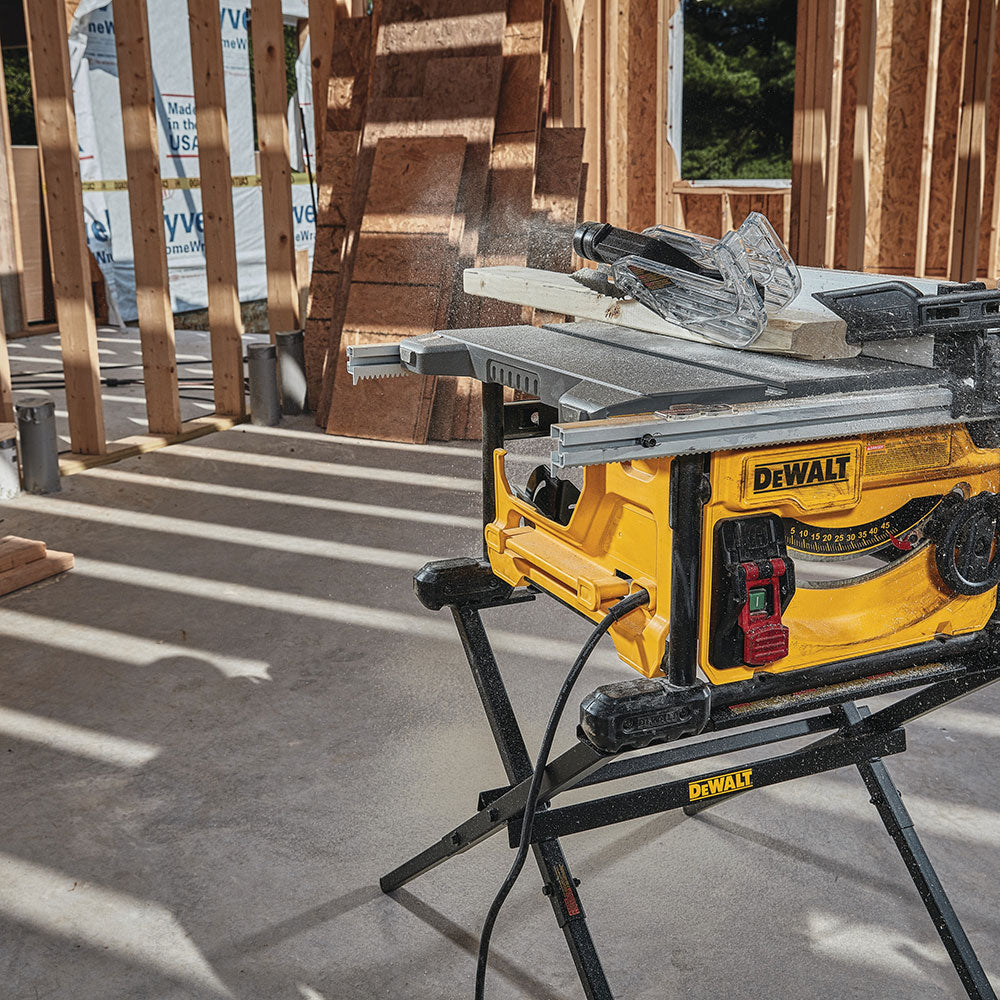

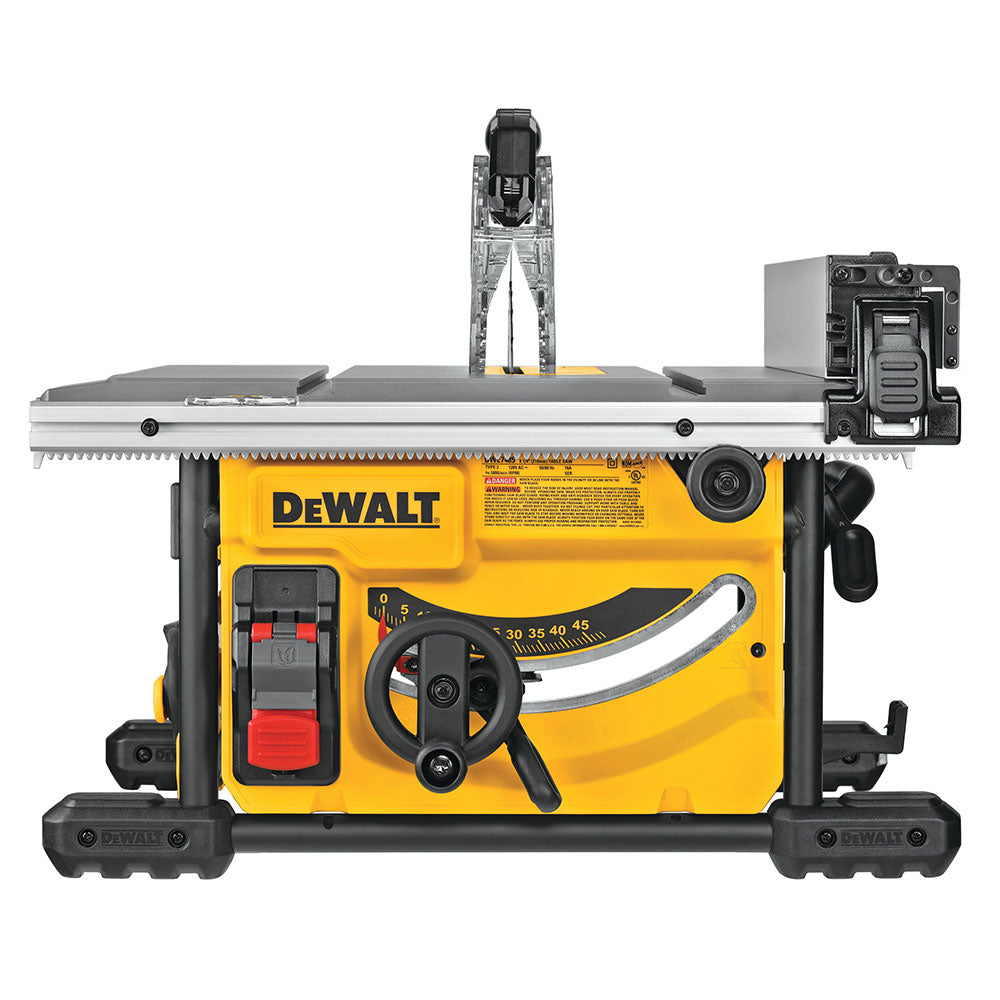

Maximized for accuracy and capacity, this 8-1/4 in. Table Saw includes on-board storage for the blade guard assembly, non-through cut riving knife, anti-kickback pawls, blade-change wrenches, miter gauge, and push stick. The powerful 15 Amp, 5800 rpm motor allows users to complete a majority of applications. The rack & pinion fence allows for fast, easy adjustments and provides the capacity to rip 4x8 sheet goods.
DeWalt DWE7485 Includes
- (1) DWE7485 8-1/4 in. Table saw
- (1) Fence
- (1) Anti-kickback pawls
- (1) Miter gauge
- (1) Push stick
- (1) 8-1/4 in. Blade
- (1) Non-through cut riving knife
- (2) Blade-change wrenches
- (1) Modular guard system
DeWalt DWE7485 Features
- Compact size for easy transportation and storage

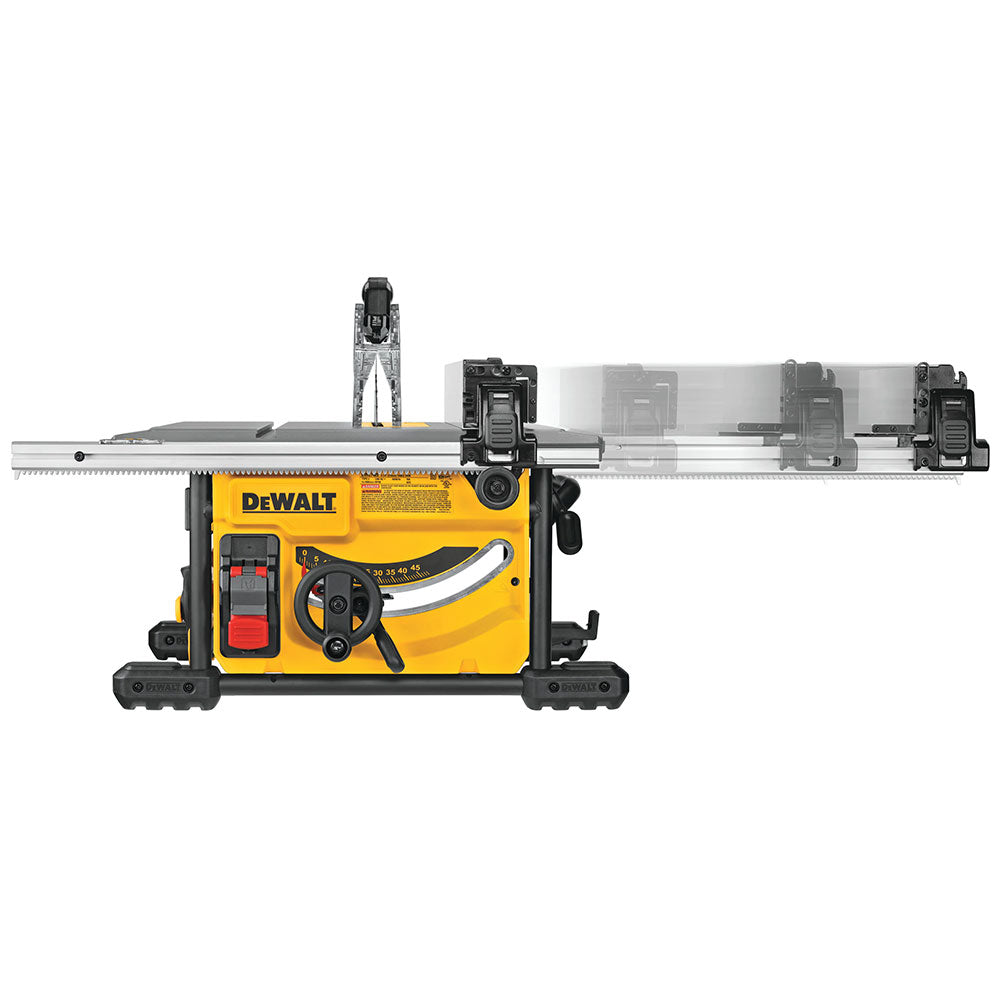

- Rack & pinion telescoping fence rails make fence adjustments fast, smooth, and accurate
- 24.5 in. of rip capacity for ripping 4x8 plywood or OSB sheets
- Power-loss reset prevents accidental restarts following a power disruption when the tool is left in the on position
- Blade brake
- On-board storage for guard, fence, wrenches, and miter gauge
- Metal roll cage base for jobsite durability
- Site-Pro Modular Guarding System allows for tool-free adjustments of the guarding
DeWalt DWE7485 Specifications
| AMPS | 15 AMPS |
| ARBOR SIZE | 5/8 IN |
| BLADE DIAMETER | 8-1/4" |
| DEPTH OF CUT AT 45° | 1-3/4 IN |
| DEPTH OF CUT AT 90° | 2-9/16 IN |
| DUST PORT DIAMETER | 2.5 IN |
| FOR WOOD CUTTING | TRUE |
| MAX RIP TO LEFT OF BLADE | 12 IN |
| MAX RIP TO RIGHT OF BLADE | 24.5 IN |
| NO LOAD SPEED | 5800 RPM |
| TOOL HEIGHT | 13 IN |
| TOOL LENGTH | 22.75 IN |
| TOOL WEIGHT | 46 LBS |
